传感器特性
名称 Sony IMX421 CMOS
快门 Global
靶面尺寸 11.0 mm (Type 2/3″)
分辨率 1936 x 1464 px, 2.8 MP
像元尺寸 4.5 µm (H) x 4.5 µm (V)
帧率 173 FPS @ 2.8 MP

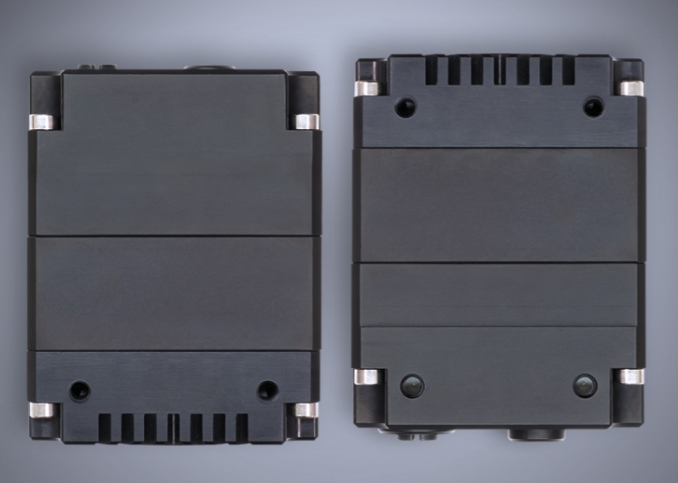

物理特性
尺寸 55 x 55 x 70 mm
镜头接口 C-Mount
重量 240 g
接口和电源信息
数据接口 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX
M12, PoE
数字I/O 8 pin M8 connector
路光耦隔离I/O 1 input, 1 output
路双向可配置非隔离I/O 2 bi-directional
功率要求 PoE (IEEE 802.3af), or 12-24 VDC external
功耗 8W via PoE, 7W when powered externally

成像特性
缓存容量 380 MB
Image Processing Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
数据格式 Mono8/10/12/16, Bayer8/10/12/16, RGB8, YUV422, YUV411
Image Modes Horizontal and vertical binning, decimation, ROI, horizontal and vertical flip
ADC 8, 10, 12 bit
增益范围 0 dB to 48 dB analog and digital
转换增益 Normal and High Mode (High: 2.3x in analog domain)
曝光时间范围 30 μs to 10 s
相机功能
User Sets 1 default and 2 custom user set
File System Size 16 MB
Chunk Data Timestamp, frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event Data Exposure start/end
Counter & Timer 2 counters and 2 timers
Sequencer Exposure time, gain
Synchronization Software trigger, hardware trigger, PTP (IEEE 1588)
标准和认证
兼容 GigE Vision v2.0
认证 CE, FCC, RoHS, REACH, WEEE
存储温度 -30 to 60°C
工作温度 -20 to 55°C
湿度 Operating: 20% ~ 80%, relative, non-condensing
冲击和振动标准 DIN EN 60068-2-27, DIN EN 60068-2-64
保修 3 year
